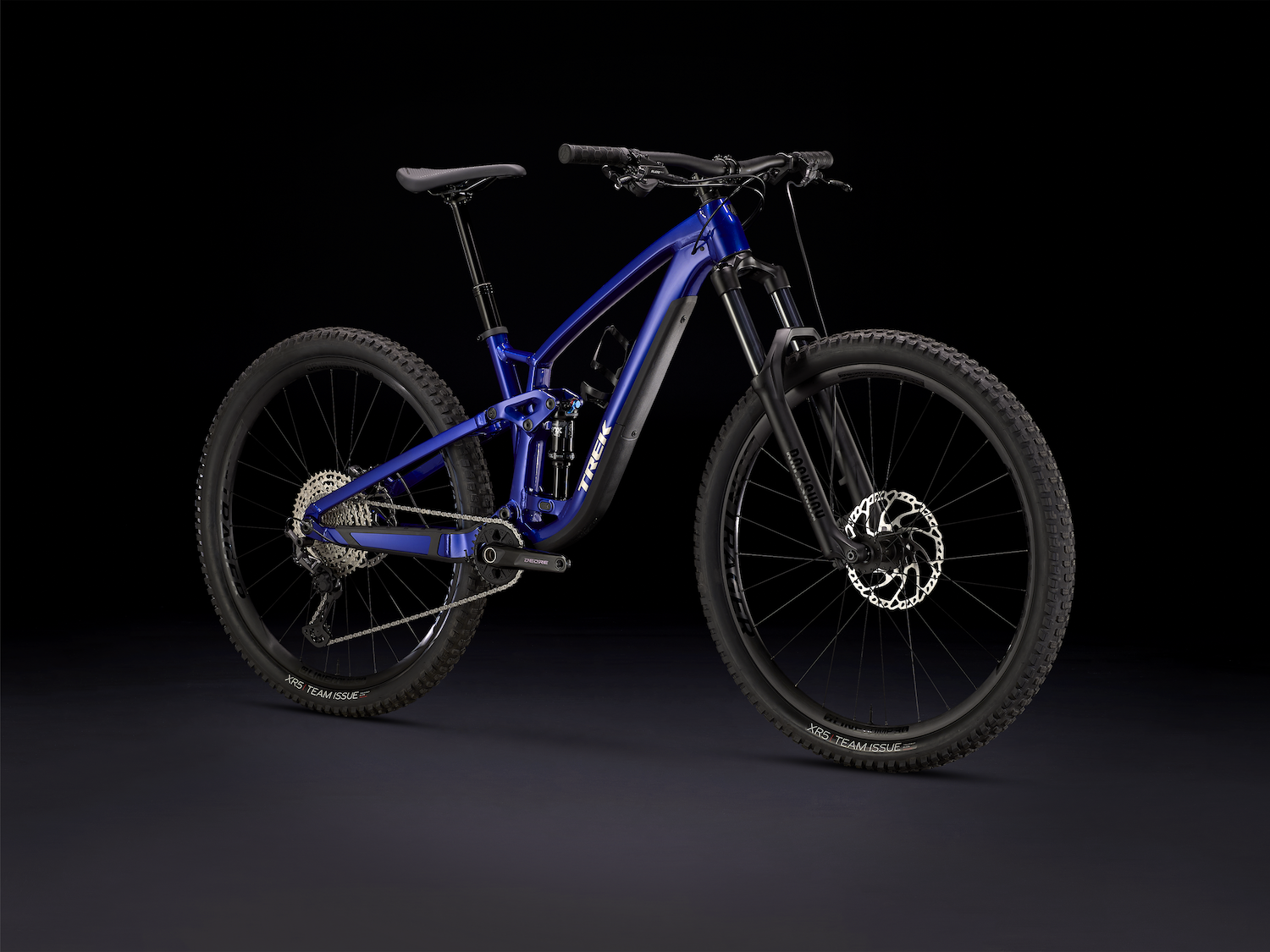

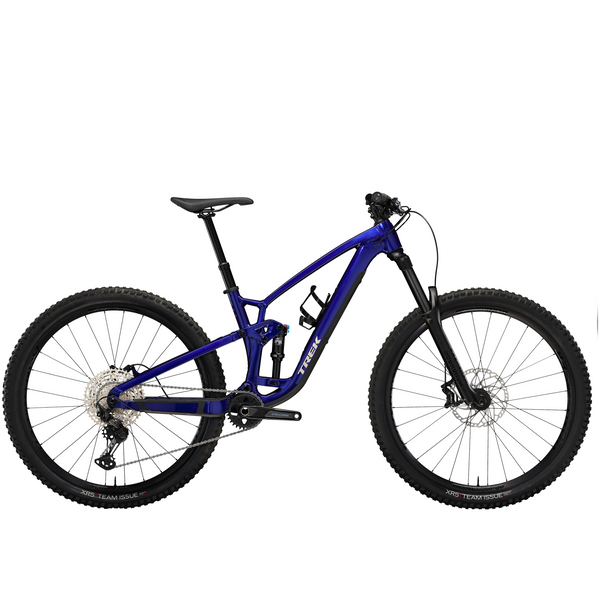

The Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150 mm front and 140 mm rear suspension smooth out rough and technical descents, while a lightweight aluminium frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1x12 drivetrain round-out this build for ultimate trail fun.
SPECS:

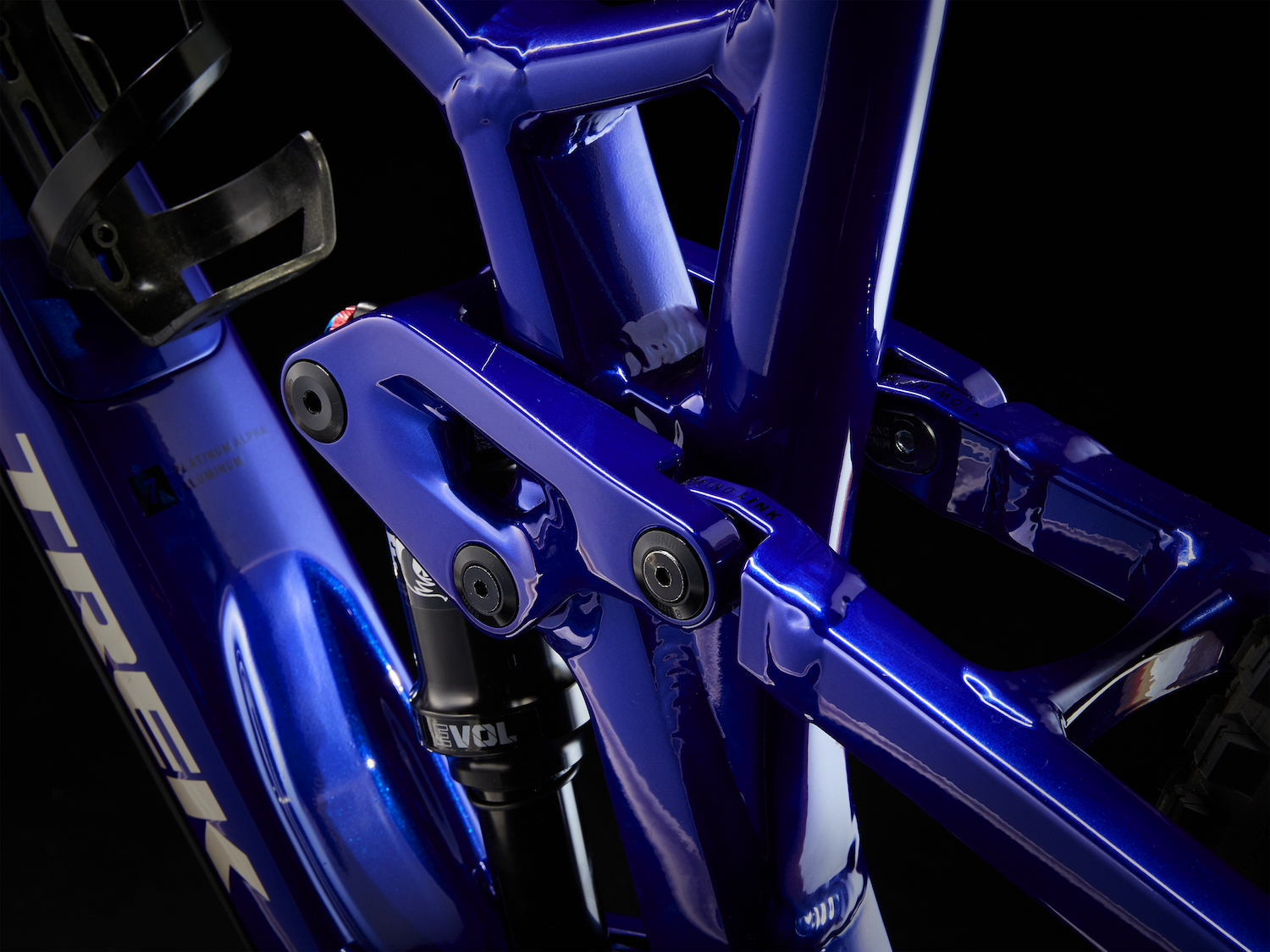

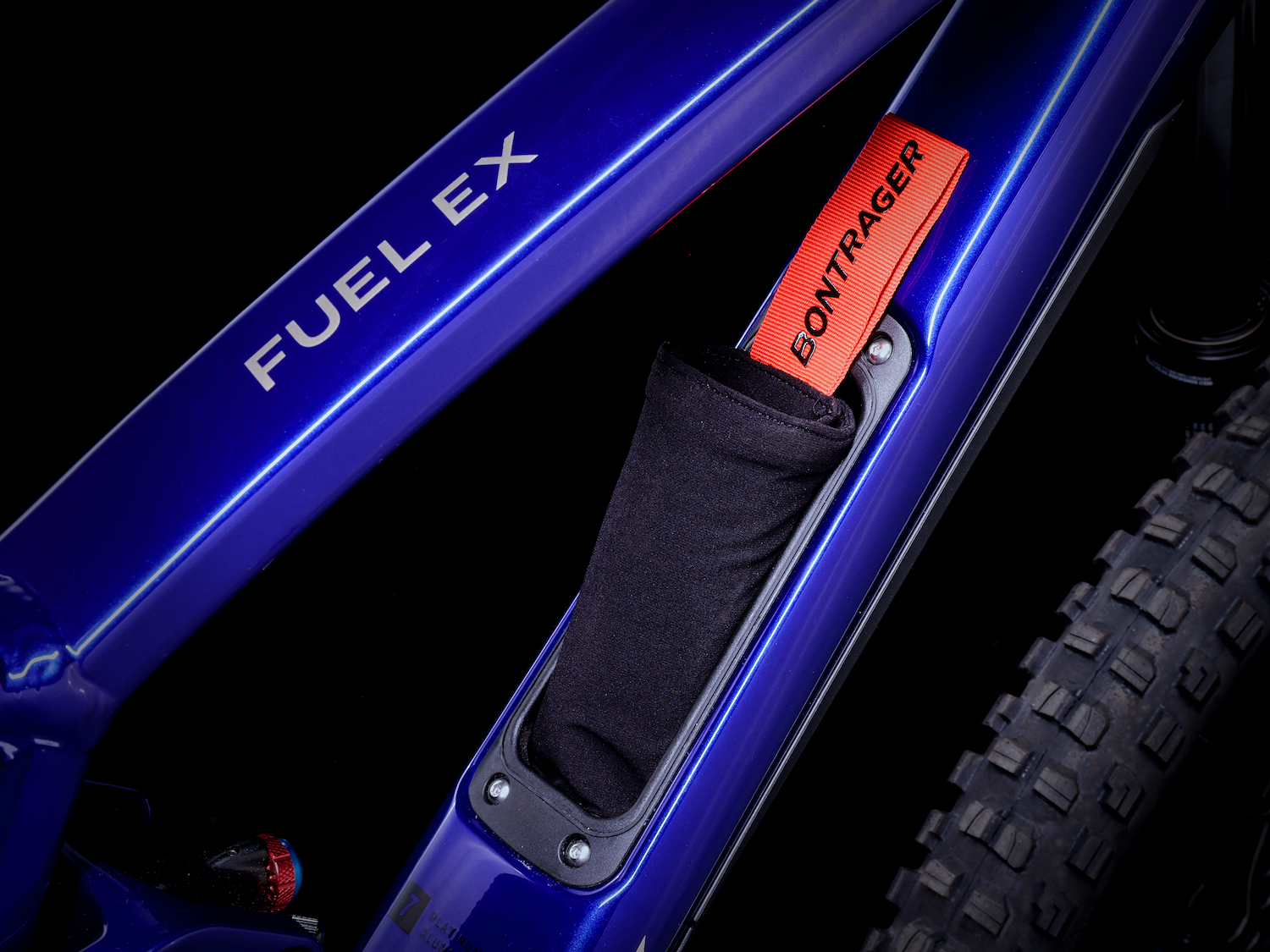

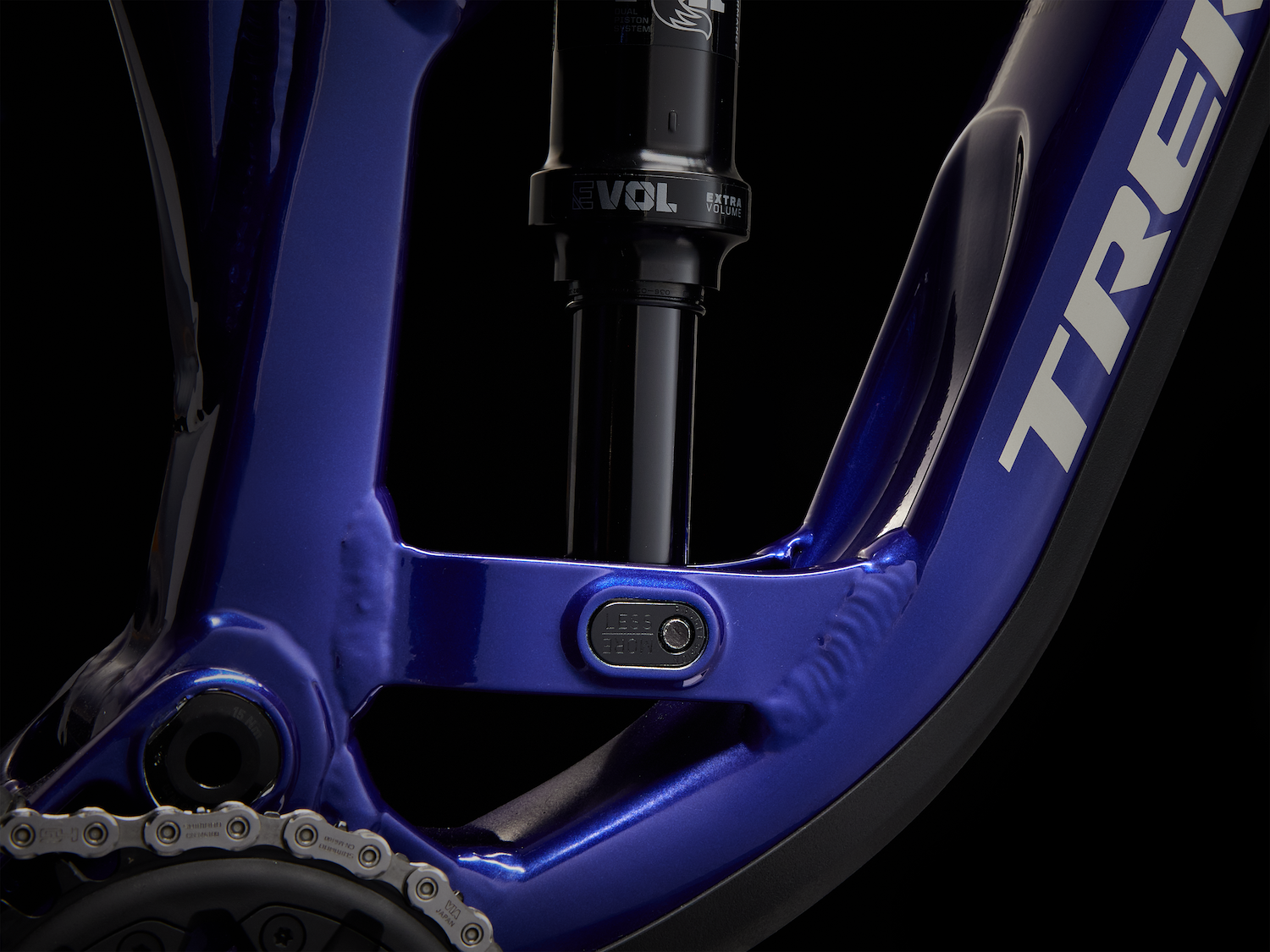

FRAME: Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
FORK: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

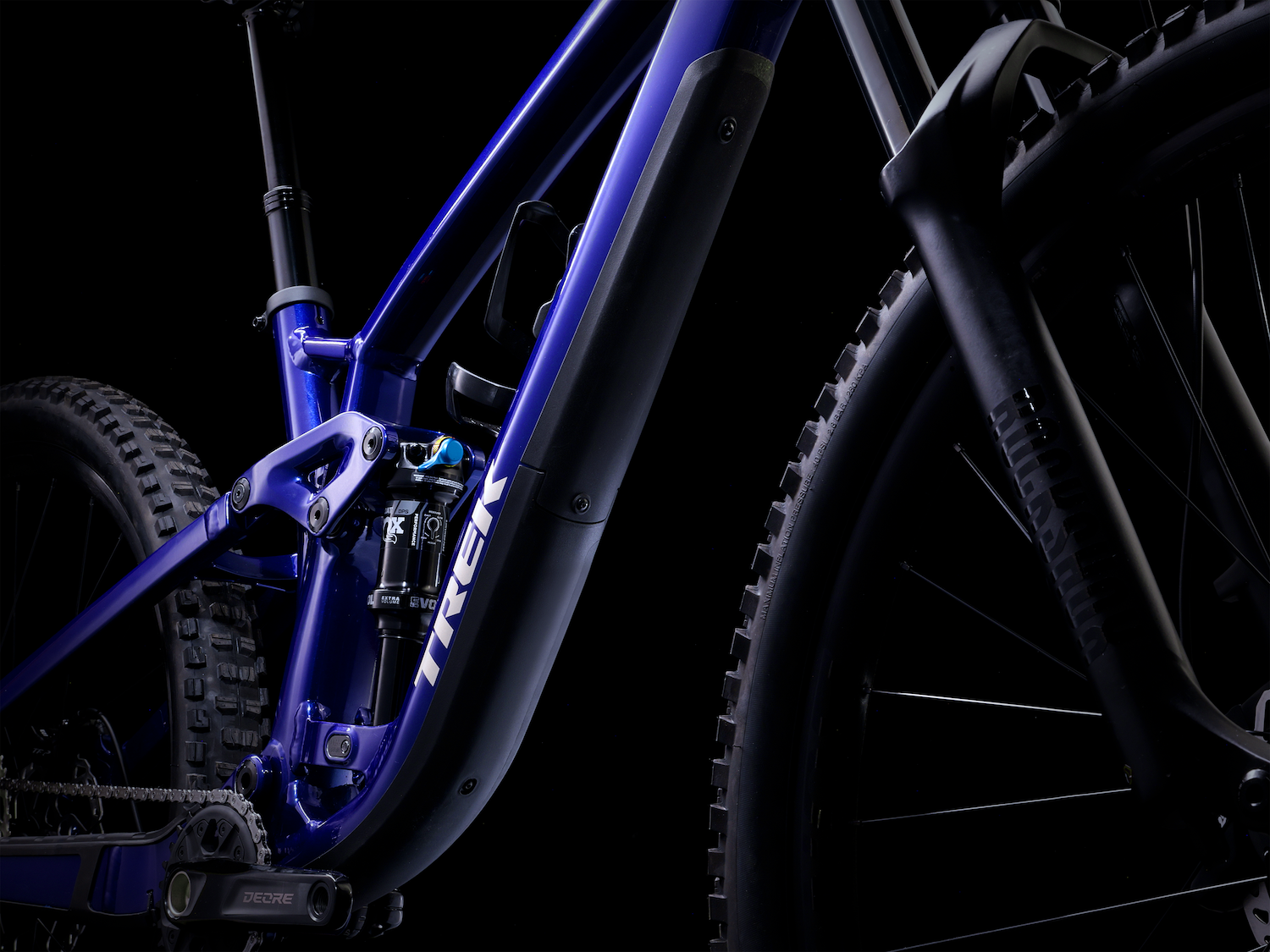

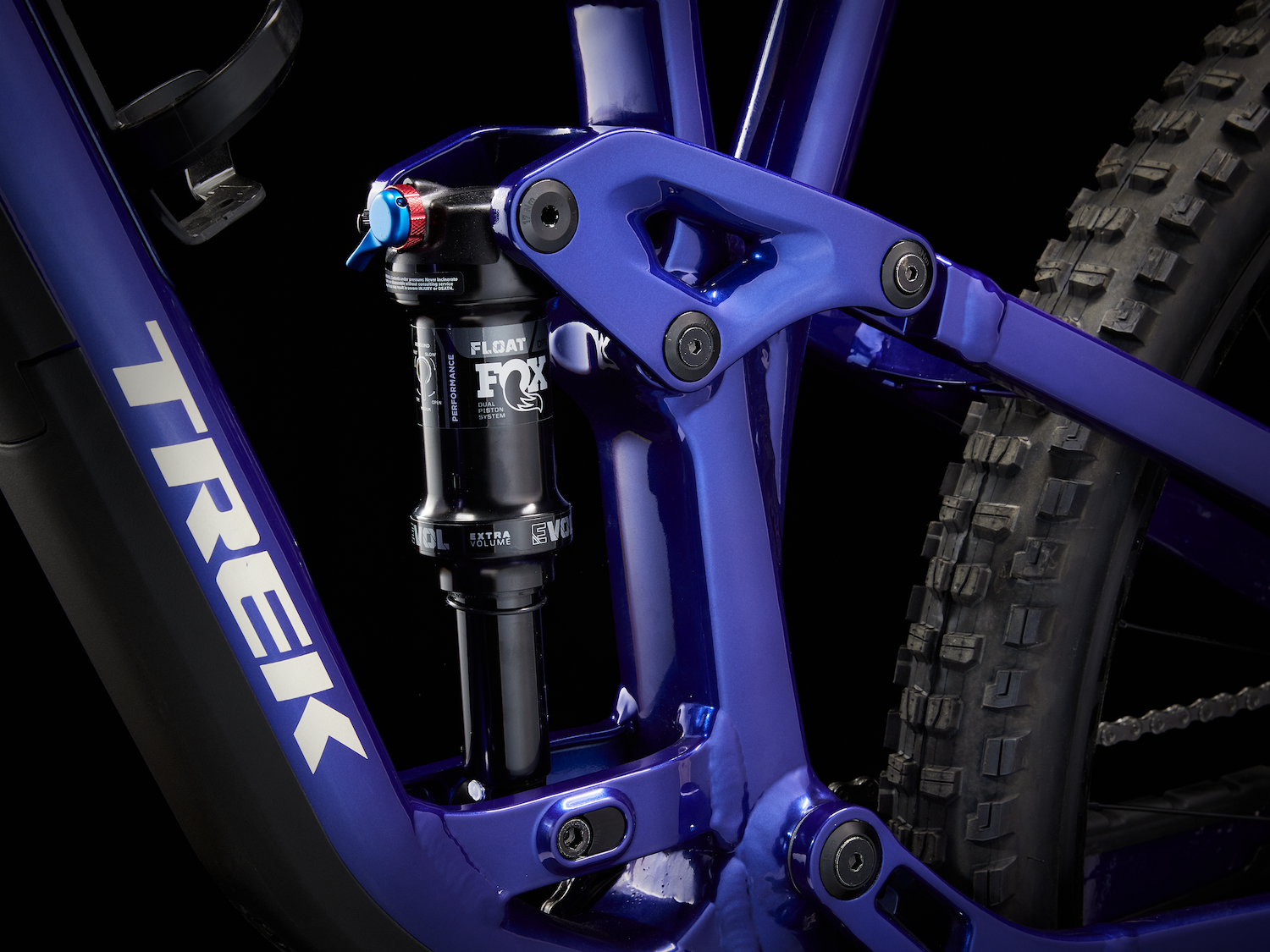

SHOCK: Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm

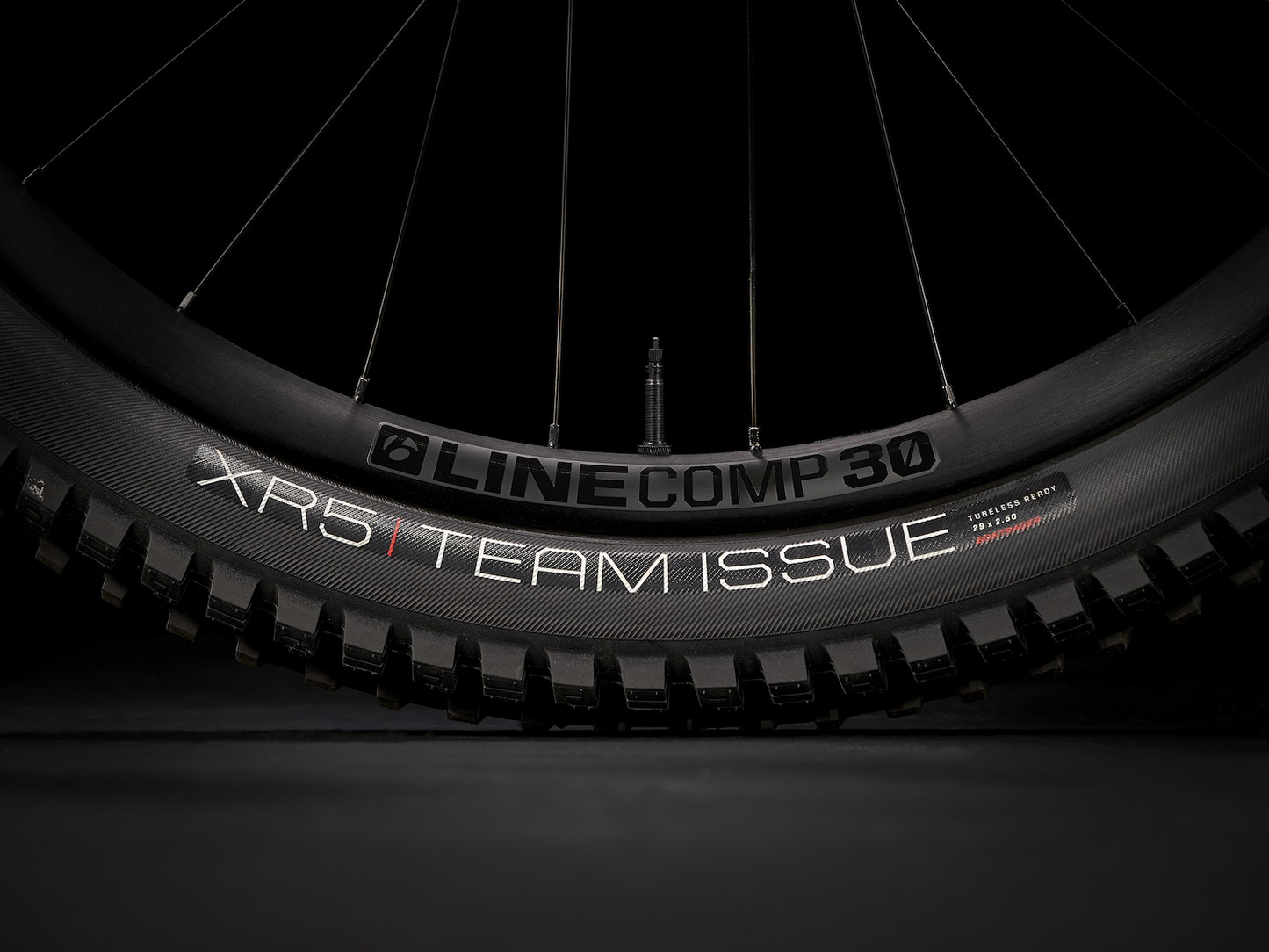

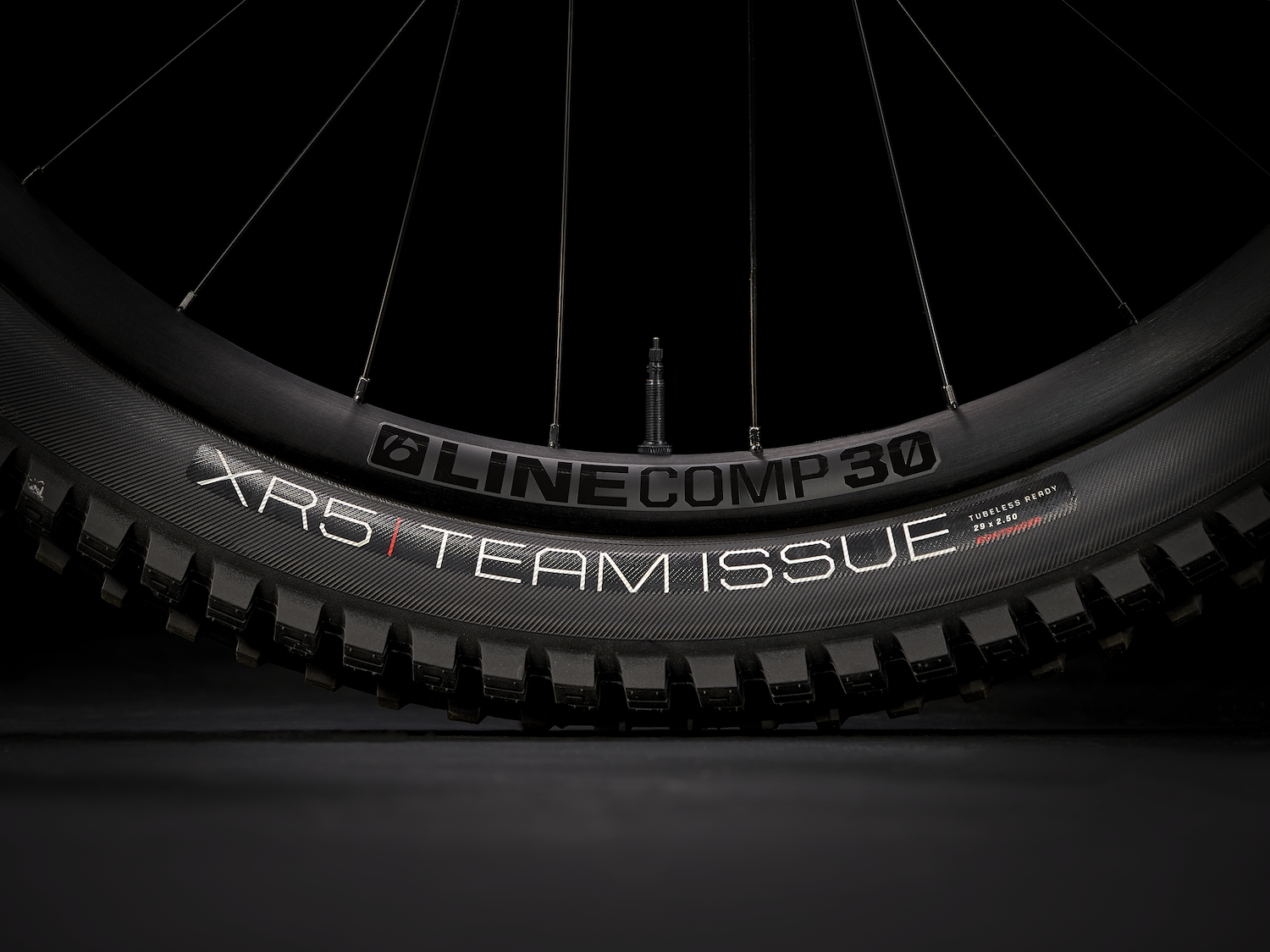

WHEELSET: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive
TYRE: Bontrager XR 5 Team Issue, 29x2.50

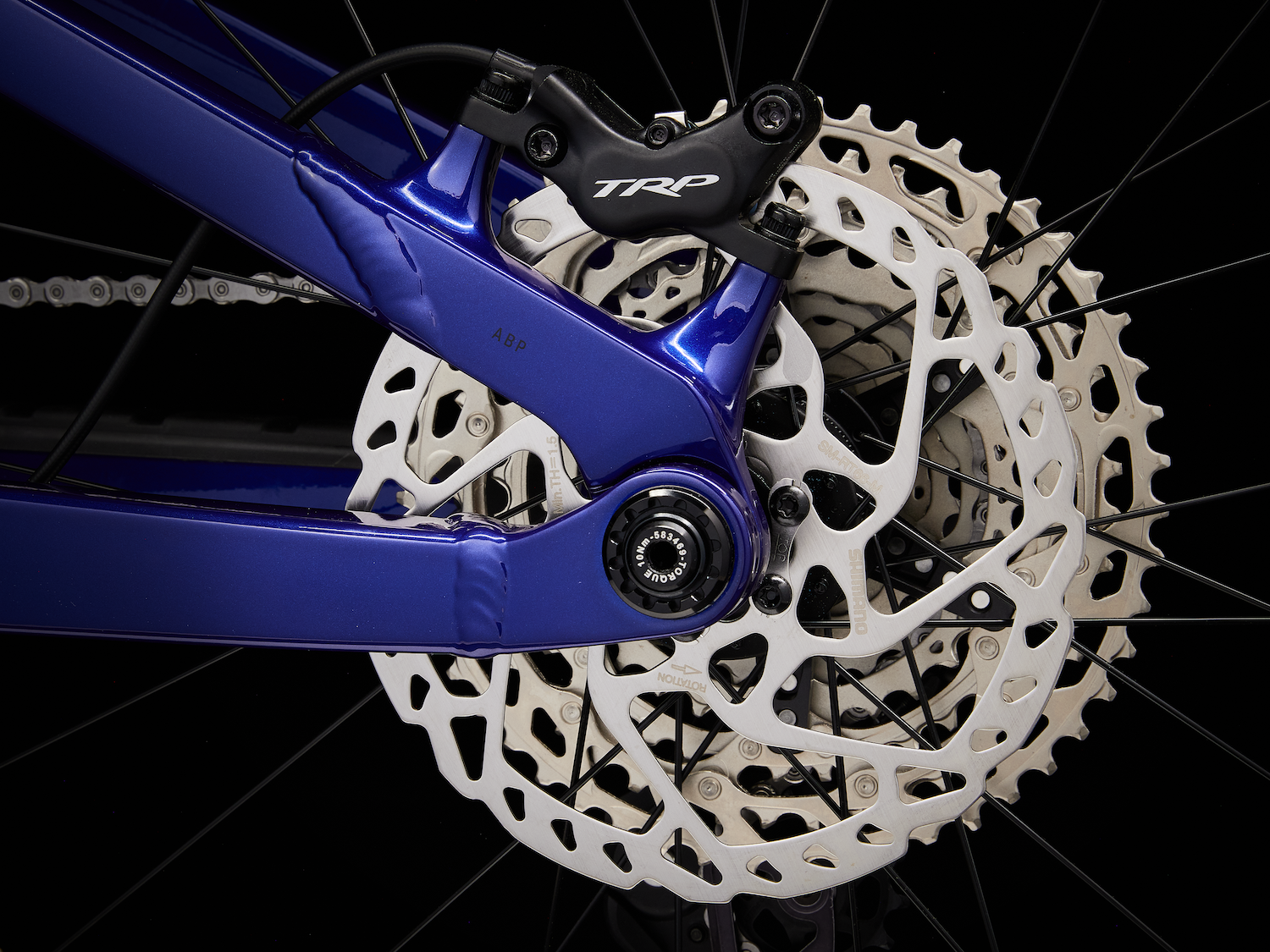

BRAKES: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
SHIFTER: Shimano SLX M7100, 12-speed

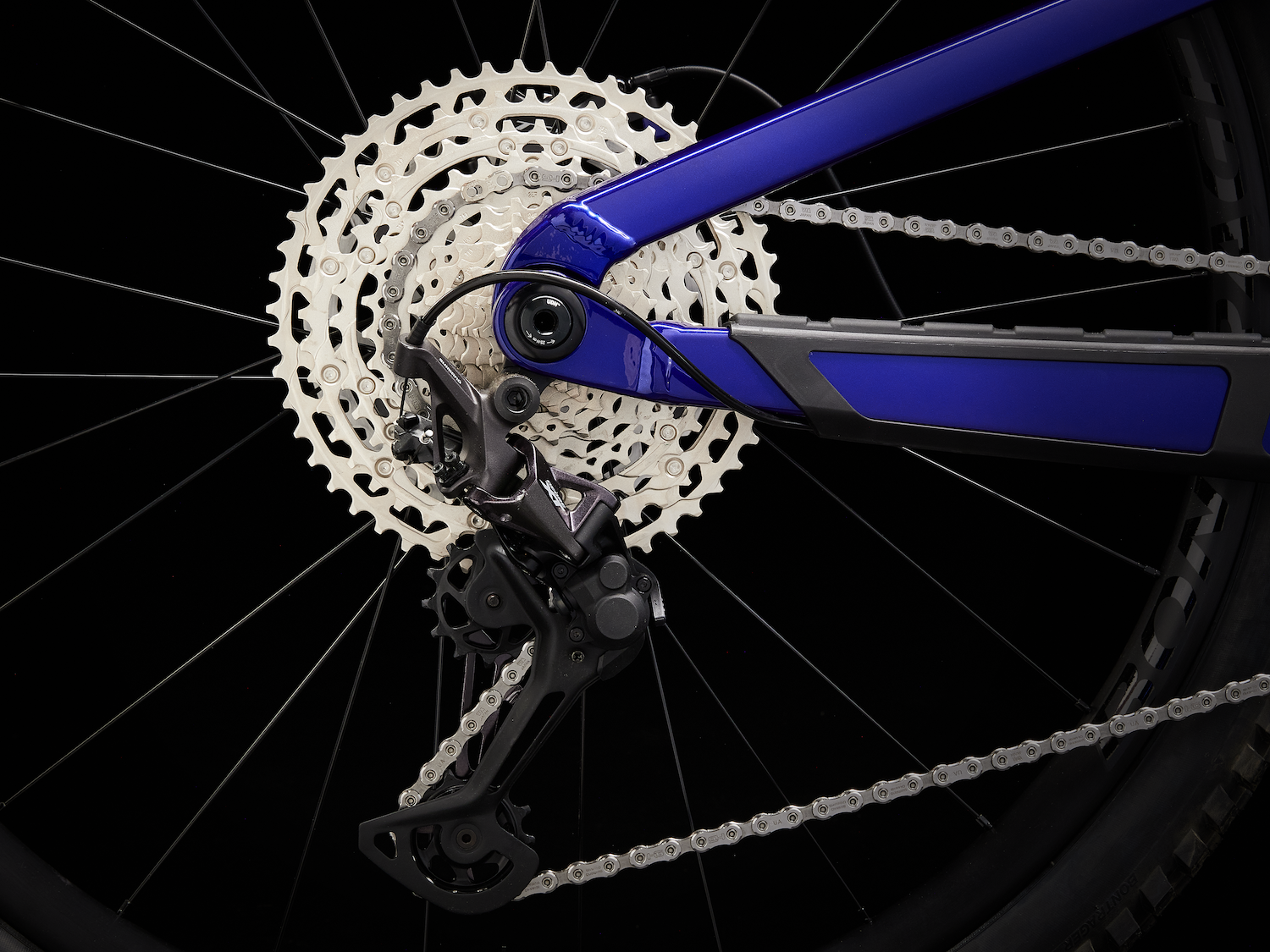

REAR DERAILLUER: Shimano XT M8100, long cage
CRANK: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
CASSETTE: Shimano Deore M6100, 10-51, 12-speed
SADDLE: Bontrager Arvada, steel rails, 138 mm width
HANDLEBAR: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
GRIP: Bontrager XR Trail Comp, nylon lock-on
STEM: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree

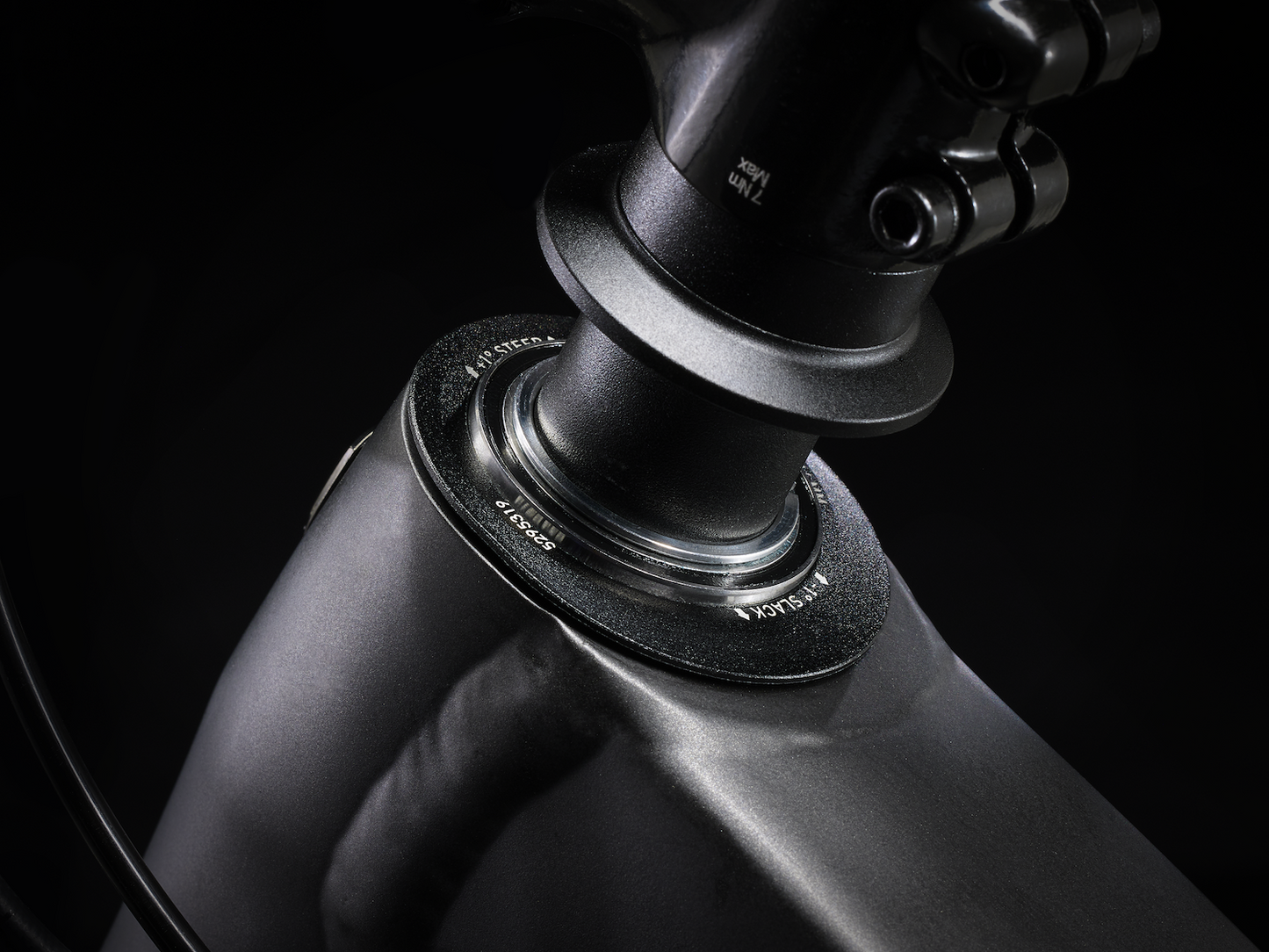

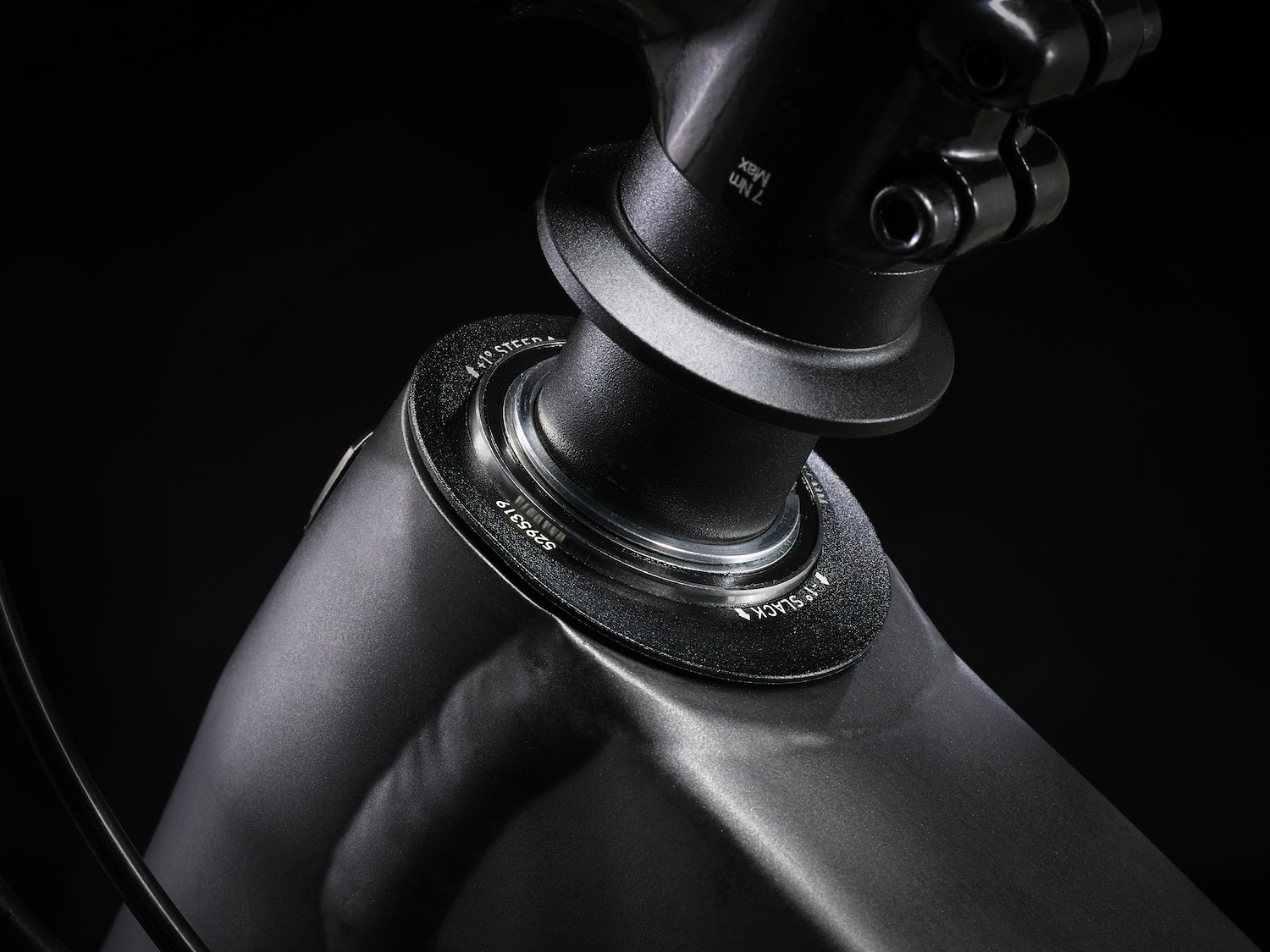

HEADSET: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
WEIGHT: M – 15.97 kg
